GN 715 Press-Fit Side Thrust Pins Housing Aluminum, Thrust Pin Steel / Plastic

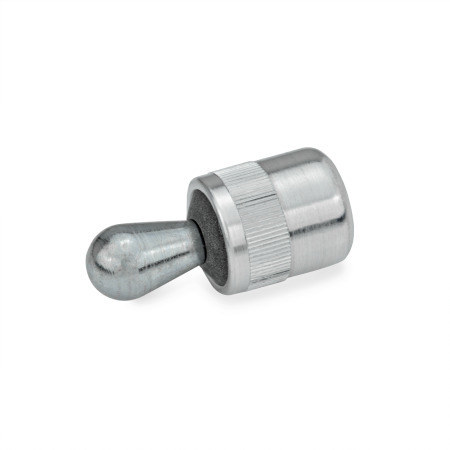

Type: SB - Steel thrust pin, with seal

GN 715 Aluminum Press-Fit Side Thrust Pins Type: KA - Plastic thrust pin, without seal

GN 715 Aluminum Press-Fit Side Thrust Pins Type: KB - Plastic thrust pin, with seal

GN 715 Aluminum Press-Fit Side Thrust Pins Type: SA - Steel thrust pin, without seal

Standard Sheet GN 715 Print This Page Technical and Assembly Instructions GN 713 / GN 715 ISO Fundamental Tolerances Plastic Characteristics

Product description

Information

Press-fit side thrust pins GN 715 are versatile and practical elements for holding, positioning and clamping of workpieces.

They eliminate costly alternatives, are space saving and easy to install. The knurled body requires only a hole tolerance of H8.

Version with seal used in applications involving a fluid or liquid.

For easy insertion a suitable installation tool GN 715.1 is available (see table).

Specification

Housing
Aluminum, plain finish

Thrust pin
Steel (Type SA / SB)

Hardedned
Zinc plated, blue passivated finish
Plastic, polyacetal (POM) (Type KA / KB)

Thrust spring
Side thrust force light
Stainless steel AISI 301
Side thrust force medium
Spring steel, blackened finish
Side thrust force heavy
Spring steel, zinc plated, blue passivated finish

Seal
Chloroprene rubber (CR)

RoHS

Accessory

Installation Tools GN 715.1
Eccentric Bushings GN 715.2

Technical drawing

GN 715 Aluminum Press-Fit Side Thrust Pins sketch

Hide technical drawing

Part Options / Table

Type

SA	Steel thrust pin, without seal
KA	Plastic thrust pin, without seal
SB	Steel thrust pin, with seal
KB	Plastic thrust pin, with seal

Show / Hide columns

Inch

Dimensions in: Inch (change to Metric)

d₁	Side thrust force F₀ Type SA / SB			Type KA / KB	a₁	a₂	d₂	d₃ H8	h min.

0.12	2.25 lbf (10 N)	4.50 lbf (20 N)	8.99 lbf (40 N)	2.25 lbf (10 N)	0.06	0.14	1/4	0.24	0.28
0.20	4.50 lbf (20 N)	11.24 lbf (50 N)	22.48 lbf (100 N)	4.50 lbf (20 N)	0.10	0.22	7/16	0.39	0.47
0.24	8.99 lbf (40 N)	16.86 lbf (75 N)	22.48 lbf (100 N)	8.99 lbf (40 N)	0.12	0.30	7/16	0.39	0.47
0.31	11.24 lbf (50 N)	22.48 lbf (100 N)	33.72 lbf (150 N)	11.24 lbf (50 N)	0.16	0.35	1/2	0.47	0.55
0.39	22.48 lbf (100 N)	33.72 lbf (150 N)	46.09 lbf (205 N)	22.48 lbf (100 N)	0.20	0.42	5/8	0.63	0.71

Show / Hide columns

Dimensions in: Inch (change to Metric)

d₁	l₁ -0.04	l₂ ±0.02	l₃ -0.08	l₄	w	x₁	x₂	Part number installation tool

0.12	0.28	0.16	0.28	0.16	0.04	0.04	0.03	715.1-3
0.20	0.43	0.26	0.45	0.24	0.06	0.07	0.05	715.1-5.6
0.24	0.43	0.42	0.45	0.39	0.08	0.07	0.06	715.1-5.6
0.31	0.51	0.55	0.55	0.51	0.10	0.11	0.08	715.1-8
0.39	0.67	0.66	0.71	0.63	0.13	0.13	0.11	715.1-10

Show / Hide columns

Metric

Dimensions in: Inch (change to Metric)

d₁	Side thrust force F₀ Type SA / SB			Type KA / KB	a₁	a₂	d₂	d₃ H8	h min.

0.12	2.25 lbf (10 N)	4.50 lbf (20 N)	8.99 lbf (40 N)	2.25 lbf (10 N)	0.06	0.14	6	0.24	0.28
0.20	4.50 lbf (20 N)	11.24 lbf (50 N)	22.48 lbf (100 N)	4.50 lbf (20 N)	0.10	0.22	10	0.39	0.47
0.24	8.99 lbf (40 N)	16.86 lbf (75 N)	22.48 lbf (100 N)	8.99 lbf (40 N)	0.12	0.30	10	0.39	0.47
0.31	11.24 lbf (50 N)	22.48 lbf (100 N)	33.72 lbf (150 N)	11.24 lbf (50 N)	0.16	0.35	12	0.47	0.55
0.39	22.48 lbf (100 N)	33.72 lbf (150 N)	46.09 lbf (205 N)	22.48 lbf (100 N)	0.20	0.42	16	0.63	0.71

Show / Hide columns

Dimensions in: Inch (change to Metric)

d₁	l₁ -0.04	l₂ ±0.02	l₃ -0.08	l₄	w	x₁	x₂	Part number installation tool

0.12	0.28	0.16	0.28	0.16	0.04	0.04	0.03	715.1-3
0.20	0.43	0.26	0.45	0.24	0.06	0.07	0.05	715.1-5.6
0.24	0.43	0.42	0.45	0.39	0.08	0.07	0.06	715.1-5.6
0.31	0.51	0.55	0.55	0.51	0.10	0.11	0.08	715.1-8
0.39	0.67	0.66	0.71	0.63	0.13	0.13	0.11	715.1-10

Build & Price

3D Product Configurator

Technical and Assembly Instructions


				w = Movement of thrust pin F = Side thrustforce in N / Ibf F₀ = Initial thrust 1.1 x F₀ = End thrust a₂ - a₁ = Clamping range for workpiece x = Distance centre line – Thrust point at w/2 x₁ for highest thrust point (a₁) x₂ for lowest thrust point (a₂) l₀ = Distance end stop – Bore of side thrust pin l₀ = l_m + x l_m = average length of workpiece (l_max + l_min) / 2 For thrust points (workpiece heights) between a₁ and a₂ a value for x lying between x₁ and x₂ has to be used (interpolation).
				By observing the above values the full movement of the side thrust pin will be available to cover the tolerance of the workpiece.
				For inserting the side thrust pins the use of a Installation Tools GN 715.1 installation tool is recommended.
				Eccentric Bushings GN 715.2 eccentric bushings are a tooling accessory for GN 715. They enable a precise optimum setting of side thrust pins. This allows an adjustment of l₀ to accommodate a larger tolerance range on a workpiece, for instance.
