Retaining Magnets GN 52.3

Product description

Information

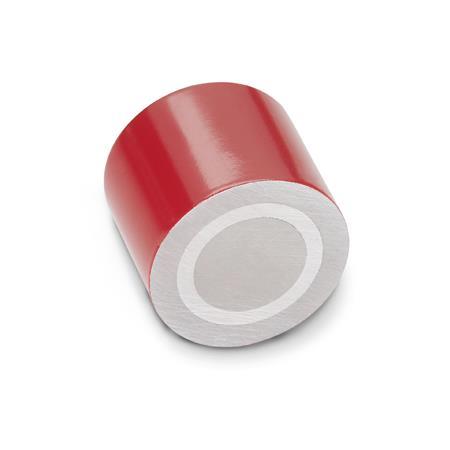

Retaining magnets GN 52.3, in combination with the zinc plated or red painted steel housing and the insulation made of brass / aluminum, form a system that shields and strengthens the magnet for optimal transmission of the magnetic flux onto the magnetic surface.

For easier handling and to avoid demagnetization, a zinc plated iron sheet protects the magnetic surface during storage and transport.

Specification

Magnet material
AlNiCoAN
Aluminum, nickel, cobalt

Housing
Steel

Finish

Zinc platedZB
Temperature resistant up to 662 °F (350 °C)
Red, paintedRT
Temperature resistant up to 356 °F (180 °C)

RoHS

Accessory

Magnet Holding Disks GN 70
Self-Adhesive Disks GN 70.1

Build & Price

Part Number ZB	Part Number RT	d₁	Tolerances Finish ZB	Finish RT	d₂	h ±0.008	t	Nominal magnetic forces


52.3-AN-12.5-ZB	52.3-AN-12.5-RT	0.492	-	-	M 4	0.630 ±0.008	0.24	4.50 lbf (20 N)
52.3-AN-17-ZB	52.3-AN-17-RT	0.669	-	-	M 6	0.630 ±0.008	0.20	5.85 lbf (26 N)
52.3-AN-21-ZB	52.3-AN-21-RT	0.827	-	-	M 6	0.748 ±0.008	0.28	8.99 lbf (40 N)
52.3-AN-27-ZB	52.3-AN-27-RT	1.063	-	-	M 6	0.984 ±0.008	0.31	14.61 lbf (65 N)
52.3-AN-35-ZB	52.3-AN-35-RT	1.378	-	-	M 6	1.181 ±0.008	0.35	33.72 lbf (150 N)

d₁	Tolerances Finish ZB	Finish RT	d₂	h ±0.008	t	Nominal magnetic forces

0.492	±0.004	±0.008	M 4	0.630	0.24	4.50 lbf (20 N)
0.669	±0.004	±0.008	M 6	0.630	0.20	5.85 lbf (26 N)
0.827	±0.004	±0.008	M 6	0.748	0.28	8.99 lbf (40 N)
1.063	±0.004	±0.008	M 6	0.984	0.31	14.61 lbf (65 N)
1.378	±0.004	±0.008	M 6	1.181	0.35	33.72 lbf (150 N)

3D Product Configurator

Magnet material

AN - AlNiCo

Finish

RT - Red, painted

ZB - Zinc plated

Selected Part

Part Number

Total Canadian Dollars (net)

Can$9.94

Call / Email for Delivery Time

Quantity

Please note our quantity discounts (Canadian Dollars).

Min	Max	Price
1	24	Can$9.94
25	49	Can$9.11
50	99	Can$8.28
≥ 100		Can$7.45

Prop 65: Not compliant

WARNING:
Cancer and Reproductive Harm - www.P65Warnings.ca.gov

RoHS: Compliant

This article is RoHS-compliant in application of Annex III., which means it complies with EU Directive 2011/65/EU, including extension (2015/863/EU), for restricting the use of certain hazardous substances in electrical and electronic devices. The Directive regulates the use of hazardous substances in devices and components. The implementation in national law is summarily described with RoHS(Restriction of (the use of certain) hazardous substances)).

Weight: 0.026 lbs

If weight is not listed, please contact our Sales Department for additional information regarding weight.
