Light Duty Casters EN 22870

Part Number	d₁ Wheel Ø	b	d₂	d₃	d₄	h	l₁	l₂	l₃	l₄	m₁	m₂	r	Max. dynamic load capacity

22870-50-G-L-D-ST	1.97	0.71	0.24	M 10	1.65	2.76	2.36	2.36	1.18	0.59	1.52	1.89	3.27	135 lbf (600 N)
22870-75-G-L-D-ST	2.95	0.94	0.24	M 12	2.05	3.94	2.36	2.36	1.30	0.98	1.52	1.89	3.74	180 lbf (800 N)

Part Number	d₁ Wheel Ø	b	d₂	d₃	d₄	h	l₁	l₂	l₃	l₄	m₁	m₂	r	Max. dynamic load capacity

22870-50-G-LF-D-ST	1.97	0.71	0.24	M 10	1.65	2.76	2.36	2.36	1.18	0.59	1.52	1.89	3.27	135 lbf (600 N)
22870-75-G-LF-D-ST	2.95	0.94	0.24	M 12	2.05	3.94	2.36	2.36	1.30	0.98	1.52	1.89	3.74	180 lbf (800 N)

Part Number	d₁ Wheel Ø	b	d₂	d₃	d₄	h	l₁	l₂	l₃	l₄	m₁	m₂	r	Max. dynamic load capacity

22870-50-G-G-D-ST	1.97	0.71	0.24	M 10	1.65	2.76	2.36	2.36	1.18	0.59	1.52	1.89	3.27	135 lbf (600 N)
22870-75-G-G-D-ST	2.95	0.94	0.24	M 12	2.05	3.94	2.36	2.36	1.30	0.98	1.52	1.89	3.74	180 lbf (800 N)

Part Number	d₁ Wheel Ø	b	d₂	d₃	d₄	h	l₁	l₂	l₃	l₄	m₁	m₂	r	Max. dynamic load capacity

22870-50-G-GF-D-ST	1.97	0.71	0.24	M 10	1.65	2.76	2.36	2.36	1.18	0.59	1.52	1.89	3.27	135 lbf (600 N)
22870-75-G-GF-D-ST	2.95	0.94	0.24	M 12	2.05	3.94	2.36	2.36	1.30	0.98	1.52	1.89	3.74	180 lbf (800 N)

d₁ Wheel Ø	b	d₂	d₃	d₄	h	l₁	l₂	l₃	l₄	m₁	m₂	r	Max. dynamic load capacity

1.97	0.71	0.24	M 10	1.65	2.76	2.36	2.36	1.18	0.59	1.52	1.89	3.27	135 lbf (600 N)
2.95	0.94	0.24	M 12	2.05	3.94	2.36	2.36	1.30	0.98	1.52	1.89	3.74	180 lbf (800 N)

Suitable for Floor Type

The type of the floor and the possible obstacles are factors that influence the amount of force required to move the cart as well as the transmission of vibrations and the wear on the wheel.
Based on the characteristics of the floor, the guidelines apply to selecting the right wheel:

For irregular floors and in the case of obstacles, the wheels should have soft and thick tread and large diameter.
For smooth floors and heavy loads, the wheels should have hard tread.

The following table shows the suitable floor type for each wheel in simplified form.

Show / Hide columns

Standard	Tiles	Asphalt	Cement-resin, concrete	Unpaved floor	Grate floor	Floor with chips	Floor with obstacles

EN 22870	x	-	-	-	-	-	x
EN 22872	x	-	x	-	-	-	-
EN 22873	x	x	x	x	x	x	x
EN 22874	x	x	x	x	x	x	x
EN 22875	x	x	x	x	x	x	x
EN 22880	x	-	x	-	-	-	x
EN 22882	x	-	x	-	-	-	-
EN 22884	x	-	x	-	-	-	x
EN 22885	x	-	x	-	-	-	-
EN 22886	x	x	x	x	x	x	x
EN 22887	x	-	x	-	-	-	-
EN 22892	x	-	x	-	-	-	-
EN 22894	x	-	x	-	-	-	-
EN 22868	x	-	x	-	-	-	-

Selected Part

Part Number

Total Canadian Dollars (net)

Can$24.27

Call / Email for Delivery Time

Quantity

Please note our quantity discounts (Canadian Dollars).

Min	Max	Price
1	49	Can$24.27
50	99	Can$22.25
100	249	Can$20.23
≥ 250		Can$18.21

Prop 65: Not compliant

WARNING:
Cancer and Reproductive Harm - www.P65Warnings.ca.gov

RoHS: Compliant

This article is RoHS-compliant in application of Annex III., which means it complies with EU Directive 2011/65/EU, including extension (2015/863/EU), for restricting the use of certain hazardous substances in electrical and electronic devices. The Directive regulates the use of hazardous substances in devices and components. The implementation in national law is summarily described with RoHS(Restriction of (the use of certain) hazardous substances)).

Weight: 0.771 lbs

If weight is not listed, please contact our Sales Department for additional information regarding weight.
Phone: 1-800-397-6993

All Prices are in Canadian Dollars. Taxes Not Included.

CAD data

Other Data Formats

Save as Favorites

L	Swivel bracket with mounting plate
LF	Swivel bracket with mounting plate, with total lock brake
G	Swivel bracket with threaded stud
GF	Swivel bracket with threaded stud, with total lock brake

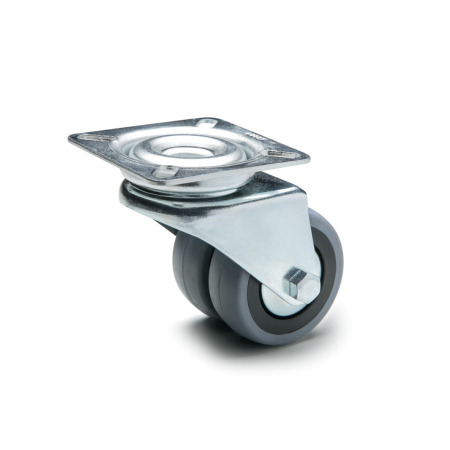

EN 22870 Light Duty Casters Rubber Wheel Tread, Polypropylene Wheel Core, Double Wheel Version


Product description

Information

Specification

Technical drawing

Part Options / Table

Bearing type

Bracket type

Coding

Bracket type: L - Swivel bracket with mounting plate

Bracket type: LF - Swivel bracket with mounting plate, with total lock brake

Bracket type: G - Swivel bracket with threaded stud

Bracket type: GF - Swivel bracket with threaded stud, with total lock brake
