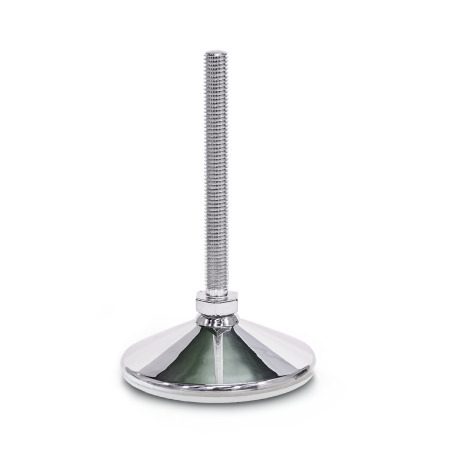

Version (Stud): S - Without nut, external hex at the bottom
FDA compliant
Product Family Stainless Steel
Standard parts made of rustproof stainless steel have been designed for use in the food sector, in the chemical industry, for aggressive ambient conditions or for outdoor use.
Leveling feet GN 18 are particularly suitable for use in aggressive environments.
The inclined surfaces for liquid runoff and the high surface quality of the base plate simplify cleaning and prevent the accumulation of dust or dirt. The FDA compliant and vulcanized rubber underlay seals the base against the resting surface and allows the feet to be used in food-processing areas or the pharmaceutical industry, for example.
The leveling feet are supplied assembled and cannot be disassembled.
Specification
Base
Stainless steel AISI 316L
Threaded stud
Stainless steel AISI 316L
Hex nut ISO 4032
Stainless steel AISI 316
Rubber pad
Acrylonitrile butadiene rubber (NBR)
Black
FDA compliant
Hardness 85±5 Shore A
Vulcanized
RoHS
On request
Rubber pad available in various colors
Technical drawing
Hide technical drawing
Part Options / Table
Type (Base)
C3
Polished, rubber pad vulcanized, black
Version (Stud)
S
Without nut, external hex at the bottom
SK
With nut, external hex at the bottom
T
Without nut, wrench flat at the bottom
TK
With nut, wrench flat at the bottom
Version (Stud): S - Without nut, external hex at the bottom
This article is RoHS-compliant in application of Annex III., which means it complies with EU Directive 2011/65/EU, including extension (2015/863/EU), for restricting the use of certain hazardous substances in electrical and electronic devices. The Directive regulates the use of hazardous substances in devices and components. The implementation in national law is summarily described with RoHS(Restriction of (the use of certain) hazardous substances)).
Weight: 0.267 lbs
If weight is not listed, please contact our Sales Department for additional information regarding weight. Phone: 1-800-397-6993
