Snap Door Latches EN 449

Product description

Information

EN 449 snap door latches are an easy way of holding swing doors shut.

A spring loaded latch (type A) snaps tight when pushed closed and releases when pulled open. In the design with finger handle (type B), the door is held shut via the hook latch. The door is unlatched by lifting the finger handle. This finger handle can be used in place of a separate door operating handle.

Specification

Latch housing
Plastic
Technopolymer (Poylamide PA)

Glass fiber reinforced
Temperature resistant up to 176 °F (80 °C)
Black, matte finishSW
Gray, matte finishLG

Thrust spring
Stainless steel

RoHS

Part Options / Table

Type

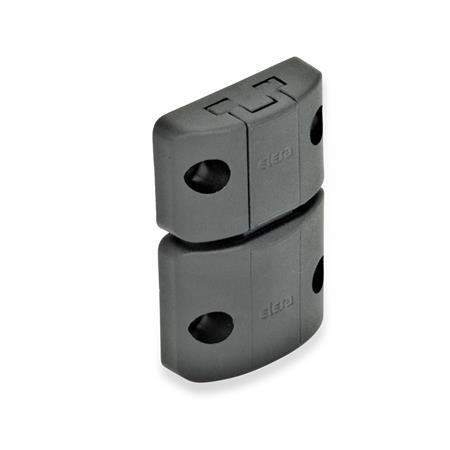

A	Snap latch without hook, without finger handle
B	Snap latch with hook, with finger handle

Part Number A - Snap latch without hook, without finger handle	Part Number B - Snap latch with hook, with finger handle	b	Holding force F_H (for Type A with bore distance 34 mm)


449-38-A-SW	449-38-B-SW	1.50	22.48 lbf (100 N)
449-38-A-LG	449-38-B-LG	1.50	22.48 lbf (100 N)

Show / Hide columns

Metric

Dimensions in: Inch (change to Metric)

b	Holding force F_H (for Type A with bore distance 34 mm)

1.50	22.48 lbf (100 N)

Build & Price

3D Product Configurator

Width b

1.50

Type

A - Snap latch without hook, without finger handle

B - Snap latch with hook, with finger handle

Color

LG - Gray, matte finish

SW - Black, matte finish

Selected Part

Part Number

Total Canadian Dollars (net)

Can$9.83

Call / Email for Delivery Time

Quantity

Please note our quantity discounts (Canadian Dollars).

Min	Max	Price
1	6	Can$9.83
7	99	Can$9.48
100	249	Can$8.94
≥ 250		Can$8.05

Prop 65: Not compliant

WARNING:
Cancer and Reproductive Harm - www.P65Warnings.ca.gov

RoHS: Compliant

This article is RoHS-compliant in application of Annex III., which means it complies with EU Directive 2011/65/EU, including extension (2015/863/EU), for restricting the use of certain hazardous substances in electrical and electronic devices. The Directive regulates the use of hazardous substances in devices and components. The implementation in national law is summarily described with RoHS(Restriction of (the use of certain) hazardous substances)).

Weight: 0.050 lbs

If weight is not listed, please contact our Sales Department for additional information regarding weight.
