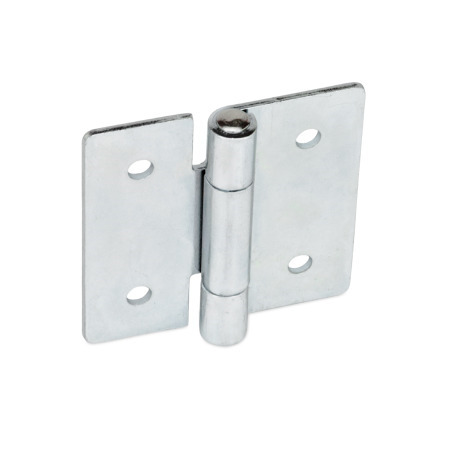

Sheet Metal Hinges GN 136

Build & Price

Part Number B - With through holes	Part Number C - With countersunk holes	l₁	l₂ Square	1.5x extended	d₁	d₂	d₃	d₄	m₁	m₂	m₃	s


136-ST-30-30-B		1.18	1.18	1.77	0.12	0.13	-	-	0.71	0.71	-	0.06
	136-ST-30-30-C	1.18	1.18	1.77	0.12	-	0.16	0.25	0.71	0.71	-	0.06
136-ST-30-45-B		1.18	1.18	1.77	0.12	0.13	-	-	0.71	-	0.65	0.06
	136-ST-30-45-C	1.18	1.18	1.77	0.12	-	0.16	0.25	0.71	-	0.65	0.06
136-ST-40-40-B		1.57	1.57	2.36	0.16	0.17	-	-	0.98	0.98	-	0.08
	136-ST-40-40-C	1.57	1.57	2.36	0.16	-	0.20	0.33	0.98	0.98	-	0.08
136-ST-40-60-B		1.57	1.57	2.36	0.16	0.17	-	-	0.98	-	0.89	0.08
	136-ST-40-60-C	1.57	1.57	2.36	0.16	-	0.20	0.33	0.98	-	0.89	0.08
136-ST-50-50-B		1.97	1.97	2.95	0.24	0.20	-	-	1.18	1.18	-	0.08
	136-ST-50-50-C	1.97	1.97	2.95	0.24	-	0.20	0.33	1.18	1.18	-	0.08
136-ST-50-75-B		1.97	1.97	2.95	0.24	0.20	-	-	1.18	-	1.08	0.08
	136-ST-50-75-C	1.97	1.97	2.95	0.24	-	0.20	0.33	1.18	-	1.08	0.08
136-ST-60-60-B		2.36	2.36	3.54	0.24	0.20	-	-	1.42	1.42	-	0.08
	136-ST-60-60-C	2.36	2.36	3.54	0.24	-	0.20	0.33	1.42	1.42	-	0.08
136-ST-60-90-B		2.36	2.36	3.54	0.24	0.20	-	-	1.42	-	1.30	0.08
	136-ST-60-90-C	2.36	2.36	3.54	0.24	-	0.20	0.33	1.42	-	1.30	0.08

l₁	l₂ Square	1.5x extended	d₁	d₂	d₃	d₄	m₁	m₂	m₃	s

1.18	1.18	1.77	0.12	0.13	0.16	0.25	0.71	0.71	0.65	0.06
1.57	1.57	2.36	0.16	0.17	0.20	0.33	0.98	0.98	0.89	0.08
1.97	1.97	2.95	0.24	0.20	0.20	0.33	1.18	1.18	1.08	0.08
2.36	2.36	3.54	0.24	0.20	0.20	0.33	1.42	1.42	1.30	0.08

3D Product Configurator

Selected Part

Part Number

Total Canadian Dollars (net)

Can$4.78

In Stock: 6

In Stock

Quantity

Please note our quantity discounts (Canadian Dollars).

Min	Max	Price
1	99	Can$4.78
100	249	Can$4.38
250	499	Can$3.98
≥ 500		Can$3.58

Prop 65: Not compliant

WARNING:
Cancer and Reproductive Harm - www.P65Warnings.ca.gov

RoHS: Compliant

This article is RoHS-compliant in application of Annex III., which means it complies with EU Directive 2011/65/EU, including extension (2015/863/EU), for restricting the use of certain hazardous substances in electrical and electronic devices. The Directive regulates the use of hazardous substances in devices and components. The implementation in national law is summarily described with RoHS(Restriction of (the use of certain) hazardous substances)).

Weight: 0.071 lbs

If weight is not listed, please contact our Sales Department for additional information regarding weight.
