EN 22884 Wheels Polyurethane Wheel Tread, Polyamide Wheel Core

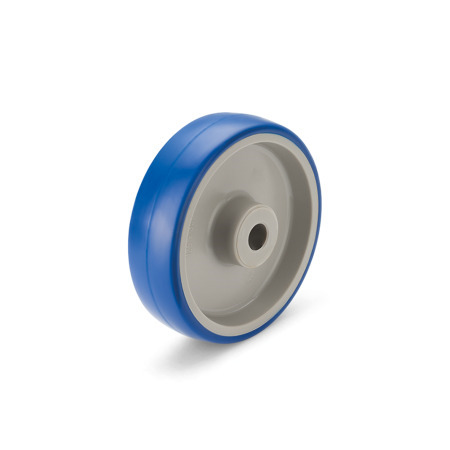

EN 22884 Polyurethane Wheels, Polyamide Wheel Core Bearing type: G - Friction bearing
Type: A - Wheel without bracket

Original design RE.F1

Standard Sheet EN 22884 Print This Page General Notes and Overview of Types Operating Conditions and Technical Information Plastic Characteristics

Product description

Wheels EN 22884 are used in industrial and public indoor areas for moving transport carts, for example.

The wheel tread offers low rolling resistance and high elasticity as well as good wear and tearing resistance. It is good at overcoming obstacles.

Specification

Wheel tread
Thermoplastic polyurethane (TPU)

Injection molded
Blue
Hardness 85 Shore A

Wheel core
Plastic, polyamide (PA)

Operating temperature
5 °F to 158 °F (-15 °C to +70 °C)

RoHS

EN 22884 Polyurethane Wheels, Polyamide Wheel Core sketch

Hide technical drawing

Part Options / Table

Bearing type

G	Friction bearing

Type

A	Wheel without bracket

Show / Hide columns

Dimensions in: Inch (change to Metric)

Part Number	d₁ Wheel Ø	b₁	b₂	d₂	Recommended ergonomic maximum load	Max. static load capacity	Max.  dynamic load capacity

22884-80-G-A	3.15	1.18	1.54	0.47	169 lbf (750 N)	360 lbf (1600 N)	169 lbf (750 N)
22884-100-G-A	3.94	1.18	1.73	0.47	270 lbf (1200 N)	450 lbf (2000 N)	270 lbf (1200 N)
22884-125-G-A	4.92	1.38	1.73	0.59	405 lbf (1800 N)	787 lbf (3500 N)	405 lbf (1800 N)
22884-150-G-A	5.91	1.77	2.32	0.79	540 lbf (2400 N)	1012 lbf (4500 N)	562 lbf (2500 N)
22884-200-G-A	7.87	1.97	2.32	0.79	674 lbf (3000 N)	1124 lbf (5000 N)	674 lbf (3000 N)

Show / Hide columns

Metric

Dimensions in: Inch (change to Metric)

d₁ Wheel Ø	b₁	b₂	d₂	Recommended ergonomic maximum load	Max. static load capacity	Max.  dynamic load capacity

3.15	1.18	1.54	0.47	169 lbf (750 N)	360 lbf (1600 N)	169 lbf (750 N)
3.94	1.18	1.73	0.47	270 lbf (1200 N)	450 lbf (2000 N)	270 lbf (1200 N)
4.92	1.38	1.73	0.59	405 lbf (1800 N)	787 lbf (3500 N)	405 lbf (1800 N)
5.91	1.77	2.32	0.79	540 lbf (2400 N)	1012 lbf (4500 N)	562 lbf (2500 N)
7.87	1.97	2.32	0.79	674 lbf (3000 N)	1124 lbf (5000 N)	674 lbf (3000 N)

Build & Price

Bearing type

G - Friction bearing

Type

A - Wheel without bracket

Suitable for Floor Type

The type of the floor and the possible obstacles are factors that influence the amount of force required to move the cart as well as the transmission of vibrations and the wear on the wheel.
Based on the characteristics of the floor, the guidelines apply to selecting the right wheel:

For irregular floors and in the case of obstacles, the wheels should have soft and thick tread and large diameter.
For smooth floors and heavy loads, the wheels should have hard tread.

The following table shows the suitable floor type for each wheel in simplified form.

Show / Hide columns

Standard	Tiles	Asphalt	Cement-resin, concrete	Unpaved floor	Grate floor	Floor with chips	Floor with obstacles

EN 22870	x	-	-	-	-	-	x
EN 22872	x	-	x	-	-	-	-
EN 22873	x	x	x	x	x	x	x
EN 22874	x	x	x	x	x	x	x
EN 22875	x	x	x	x	x	x	x
EN 22880	x	-	x	-	-	-	x
EN 22882	x	-	x	-	-	-	-
EN 22884	x	-	x	-	-	-	x
EN 22885	x	-	x	-	-	-	-
EN 22886	x	x	x	x	x	x	x
EN 22887	x	-	x	-	-	-	-
EN 22892	x	-	x	-	-	-	-
EN 22894	x	-	x	-	-	-	-
EN 22868	x	-	x	-	-	-	-

Selected Part

Part Number

Total (net)

Can$8.15

Available within 1-2 weeks

Quantity

Please note our quantity discounts (Canadian Dollars).

Min	Max	Price
1	49	Can$8.15
50	99	Can$7.47
100	249	Can$6.79
≥ 250		Can$6.11

Prop 65: Not compliant

WARNING:
Cancer and Reproductive Harm - www.P65Warnings.ca.gov

RoHS: Compliant

This article is RoHS-compliant in application of Annex III., which means it complies with EU Directive 2011/65/EU, including extension (2015/863/EU), for restricting the use of certain hazardous substances in electrical and electronic devices. The Directive regulates the use of hazardous substances in devices and components. The implementation in national law is summarily described with RoHS(Restriction of (the use of certain) hazardous substances)).

Weight: 0.242 lbs

If weight is not listed, please contact our Sales Department for additional information regarding weight.
