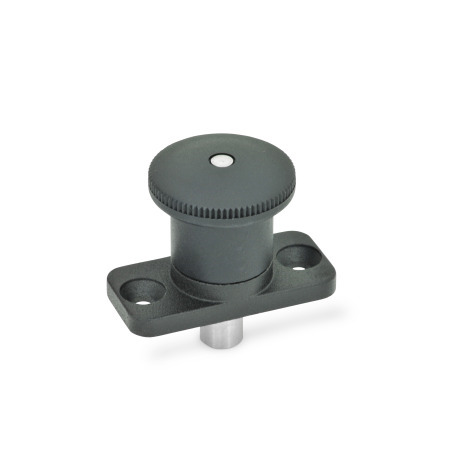

Mini Indexing Plungers GN 822.8

Product description

Information

GN 822.8 mini indexing plungers feature small, compact dimensions. They are mounted by countersunk screws.

Type C offers a lock-out position for applications that require the plunger pin to be retracted for an extended period of time. After retracting the plunger pin, turn the knob 30 degrees, release the knob and it will stay in the retracted position via the indexing lock.

These mini indexing plungers present an affordable alternative to the GN 608 and GN 608.1 indexing plungers.

Specification

Body with mounting plate
Zinc die-cast
Powder coated
Black, textured finish

Plunger pin
Stainless steel AISI 303

Spring
Stainless steel AISI 301

Knob
Plastic
Technopolymer (Polyamide PA)

Temperature resistant up to 230 °F (110 °C)
Black, matte finish
Not removable

RoHS

On request

With red knob

Build & Price

Part Number B - Non lock-out	Part Number C - Lock-out	d₁ Pin -0.002 Bore +0.001 / +0.003	l₁	b₁	b₂	d₂ -0.006	d₃	d₄	k	l₂	l₃	l₄	l₅ Stroke	Spring load ≈ Initial	End


822.8-4-5-B	822.8-4-5-C	0.16 -0.002 / +0.001 / +0.003	0.20	1.38	0.59	0.31 -0.006	0.83	0.17	0.98	0.81	0.08	0.16	0.20	0.90 lbf (4 N)	2.70 lbf (12 N)
822.8-4-10-B	822.8-4-10-C	0.16 -0.002 / +0.001 / +0.003	0.39	1.38	0.59	0.31 -0.006	0.83	0.17	0.98	0.81	0.08	0.16	0.20	0.90 lbf (4 N)	2.70 lbf (12 N)
822.8-5-6-B	822.8-5-6-C	0.20 -0.002 / +0.001 / +0.003	0.24	1.57	0.71	0.39 -0.006	0.98	0.17	1.18	1.00	0.10	0.16	0.24	1.35 lbf (6 N)	3.60 lbf (16 N)
822.8-5-12-B	822.8-5-12-C	0.20 -0.002 / +0.001 / +0.003	0.47	1.57	0.71	0.39 -0.006	0.98	0.17	1.18	1.00	0.10	0.16	0.24	1.35 lbf (6 N)	3.60 lbf (16 N)
822.8-6-6-B	822.8-6-6-C	0.24 -0.002 / +0.001 / +0.003	0.24	1.57	0.71	0.39 -0.006	0.98	0.17	1.18	1.00	0.10	0.16	0.24	1.35 lbf (6 N)	3.60 lbf (16 N)
822.8-6-12-B	822.8-6-12-C	0.24 -0.002 / +0.001 / +0.003	0.47	1.57	0.71	0.39 -0.006	0.98	0.17	1.18	1.00	0.10	0.16	0.24	1.35 lbf (6 N)	3.60 lbf (16 N)
822.8-8-10-B	822.8-8-10-C	0.31 -0.002 / +0.001 / +0.003	0.39	1.97	0.91	0.55 -0.006	1.30	0.21	1.50	1.38	0.10	0.20	0.39	2.47 lbf (11 N)	7.87 lbf (35 N)
822.8-8-20-B	822.8-8-20-C	0.31 -0.002 / +0.001 / +0.003	0.79	1.97	0.91	0.55 -0.006	1.30	0.21	1.50	1.38	0.10	0.20	0.39	2.47 lbf (11 N)	7.87 lbf (35 N)
822.8-10-10-B	822.8-10-10-C	0.39 -0.002 / +0.001 / +0.003	0.39	1.97	0.91	0.55 -0.006	1.30	0.21	1.50	1.38	0.10	0.20	0.39	2.47 lbf (11 N)	7.87 lbf (35 N)
822.8-10-20-B	822.8-10-20-C	0.39 -0.002 / +0.001 / +0.003	0.79	1.97	0.91	0.55 -0.006	1.30	0.21	1.50	1.38	0.10	0.20	0.39	2.47 lbf (11 N)	7.87 lbf (35 N)

d₁ Pin -0.002 Bore +0.001 / +0.003	l₁	b₁	b₂	d₂ -0.006	d₃	d₄	k	l₂	l₃	l₄	l₅ Stroke	Spring load ≈ Initial	End

0.16	0.20	0.39	1.38	0.59	0.31	0.83	0.17	0.98	0.81	0.08	0.16	0.20	0.90 lbf (4 N)	2.70 lbf (12 N)
0.20	0.24	0.47	1.57	0.71	0.39	0.98	0.17	1.18	1.00	0.10	0.16	0.24	1.35 lbf (6 N)	3.60 lbf (16 N)
0.24	0.24	0.47	1.57	0.71	0.39	0.98	0.17	1.18	1.00	0.10	0.16	0.24	1.35 lbf (6 N)	3.60 lbf (16 N)
0.31	0.39	0.79	1.97	0.91	0.55	1.30	0.21	1.50	1.38	0.10	0.20	0.39	2.47 lbf (11 N)	7.87 lbf (35 N)
0.39	0.39	0.79	1.97	0.91	0.55	1.30	0.21	1.50	1.38	0.10	0.20	0.39	2.47 lbf (11 N)	7.87 lbf (35 N)

3D Product Configurator

Selected Part

Part Number

Total Canadian Dollars (net)

Can$10.18

Call / Email for Delivery Time

Quantity

Please note our quantity discounts (Canadian Dollars).

Min	Max	Price
1	99	Can$10.18
100	249	Can$9.33
250	499	Can$8.48
≥ 500		Can$7.63

Prop 65: Not compliant

WARNING:
Cancer and Reproductive Harm - www.P65Warnings.ca.gov

RoHS: Compliant

This article is RoHS-compliant in application of Annex III., which means it complies with EU Directive 2011/65/EU, including extension (2015/863/EU), for restricting the use of certain hazardous substances in electrical and electronic devices. The Directive regulates the use of hazardous substances in devices and components. The implementation in national law is summarily described with RoHS(Restriction of (the use of certain) hazardous substances)).

Weight: 0.050 lbs
