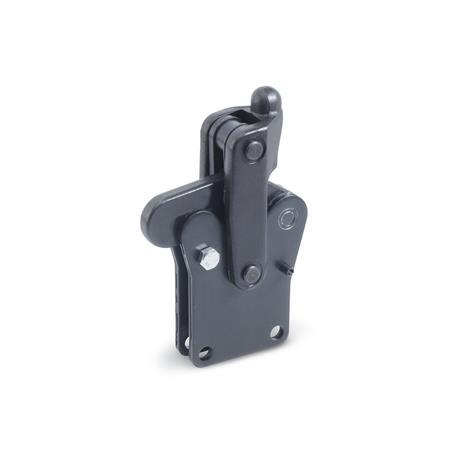

Knee Lever Modules GN 810.12

Product description

Information

Knee lever modules GN 810.12 have the same properties and attributes as the toggle clamps GN 810.10 / GN 810.11. The clamping arms are die-forged, the remaining steel sheet parts have been reinforced, bearing pins and rivets are hardened and ground.

Therefore knee lever modules are suitable for applications in which substantial forces occur and in which a long service life is required.

During extensive testing, with trouble free function and under load, the clamp has withstood over one million opening and closing cycles.

These knee lever modules permit the size and position of the lever and clamping arms to be adjusted to match the specific application.

Specification

Lever arm
Steel

Forged
Blackened finish

Parts in sheet metal
Case-hardened steel C10, blackened finish

Bearing pins and rivets
Steel, hardened and ground

All moving parts
Lubricated with special grease

RoHS

Build & Price

Part Number C - With horizontal mounting base	Part Number G - With vertical mounting base	Size	F_H Holding capacity	b₁	b₂	b₃	b₄	d	h₁	h₂	h₃	h₄	h₅


810.12-220-C	810.12-220-G	220	495 lbf (2200 N)	1.42	1.89	0.51	0.24	0.26	2.91	3.50	1.18	1.79	0.69
810.12-440-C	810.12-440-G	440	989 lbf (4400 N)	2.13	2.56	0.79	0.39	0.33	4.76	5.53	1.97	2.74	1.10
810.12-850-C	810.12-850-G	850	1911 lbf (8500 N)	2.95	2.95	0.94	0.47	0.41	6.22	7.09	2.64	3.46	1.38
810.12-1540-C	810.12-1540-G	1540	3462 lbf (15400 N)	3.54	3.94	1.34	0.63	0.49	7.60	8.74	3.01	4.17	1.57

Size	l₁	l₂	l₃	m₁	m₂	m₃	m₄	r	s₁	s₂

220	2.26	0.94	1.14	0.79	1.26	0.31	0.31	1.97	0.14	0.24
440	3.37	1.26	1.67	1.18	1.77	0.47	0.39	2.87	0.20	0.39
850	4.53	1.50	2.05	2.17	2.17	0.39	0.39	3.90	0.24	0.47
1540	5.81	2.09	2.68	2.56	2.95	0.49	0.69	5.02	0.31	0.63

Size	F_H Holding capacity	b₁	b₂	b₃	b₄	d	h₁	h₂	h₃	h₄	h₅

220	495 lbf (2200 N)	1.42	1.89	0.51	0.24	0.26	2.91	3.50	1.18	1.79	0.69
440	989 lbf (4400 N)	2.13	2.56	0.79	0.39	0.33	4.76	5.53	1.97	2.74	1.10
850	1911 lbf (8500 N)	2.95	2.95	0.94	0.47	0.41	6.22	7.09	2.64	3.46	1.38
1540	3462 lbf (15400 N)	3.54	3.94	1.34	0.63	0.49	7.60	8.74	3.01	4.17	1.57

Size	l₁	l₂	l₃	m₁	m₂	m₃	m₄	r	s₁	s₂

220	2.26	0.94	1.14	0.79	1.26	0.31	0.31	1.97	0.14	0.24
440	3.37	1.26	1.67	1.18	1.77	0.47	0.39	2.87	0.20	0.39
850	4.53	1.50	2.05	2.17	2.17	0.39	0.39	3.90	0.24	0.47
1540	5.81	2.09	2.68	2.56	2.95	0.49	0.69	5.02	0.31	0.63
