Star Knobs DIN 6336

Product description

Information

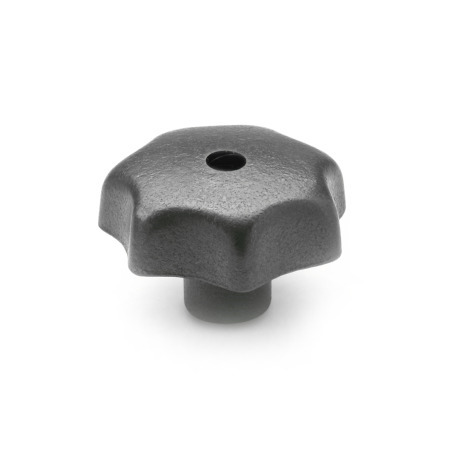

DIN 6336 cast iron star knobs are an ideal solution for heavy duty clamping applications.

Specification

Cast ironGG
Fettled and tumbled

RoHS

On request

Special inch or metric bores, threads, set screw holes, cross pin holes, drilled and pinned threaded studs and stud tips

Build & Price

Part Number D - With tapped through bore	Part Number E - With tapped blind bore	Part Number B - With plain through bore, tol. H7	Part Number C - With plain blind bore, tol. H7	d₁	d₂ Thread Type D / Type E	d₃ +0.001 Bore Type B / Type C	d₄	h₁	h₂ min.	t₁ min.	t₂


3TC77/D	3TC77/E			1.26	1/4 x 20	-	0.47	0.79	0.35	0.47	0.39
		1BC77/B	1BC77/C	1.26	-	B 1/4 +0.001	0.47	0.79	0.35	0.47	0.39
5TC78/D	5TC78/E			1.57	5/16 x 18	-	0.55	0.98	0.47	0.59	0.51
		2BC78/B	2BC78/C	1.57	-	B 5/16 +0.001	0.55	0.98	0.47	0.59	0.51
5TC79/D	5TC79/E			1.97	5/16 x 18	-	0.71	1.26	0.59	0.71	0.63
6TC79/D	6TC79/E			1.97	3/8 x 16	-	0.71	1.26	0.59	0.71	0.63
		2BC79/B	2BC79/C	1.97	-	B 5/16 +0.001	0.71	1.26	0.59	0.71	0.63
		3BC79/B	3BC79/C	1.97	-	B 3/8 +0.001	0.71	1.26	0.59	0.71	0.63
6TC80/D	6TC80/E			2.48	3/8 x 16	-	0.79	1.57	0.75	0.87	0.79
8TC80/D	8TC80/E			2.48	1/2 x 13	-	0.79	1.57	0.75	0.87	0.79
		3BC80/B	3BC80/C	2.48	-	B 3/8 +0.001	0.79	1.57	0.75	0.87	0.79
		4BC80/B	4BC80/C	2.48	-	B 1/2 +0.001	0.79	1.57	0.75	0.87	0.79
8TC81/D	8TC81/E			3.15	1/2 x 13	-	0.98	1.97	0.91	1.10	0.79
10TC81/D	10TC81/E			3.15	5/8 x 11	-	0.98	1.97	0.91	1.10	0.79
		4BC81/B	4BC81/C	3.15	-	B 1/2 +0.001	0.98	1.97	0.91	1.10	0.79
		5BC81/B	5BC81/C	3.15	-	B 5/8 +0.001	0.98	1.97	0.91	1.10	0.79
6NC77/D	6NC77/E			1.26	M 6	-	0.47	0.79	0.35	0.47	0.39
		6MC77/B	6MC77/C	1.26	-	B 6 +0.001	0.47	0.79	0.35	0.47	0.39
8NC78/D	8NC78/E			1.57	M 8	-	0.55	0.98	0.47	0.59	0.51
		8MC78/B	8MC78/C	1.57	-	B 8 +0.001	0.55	0.98	0.47	0.59	0.51
8NC79/D	8NC79/E			1.97	M 8	-	0.71	1.26	0.59	0.71	0.63
10NC79/D	10NC79/E			1.97	M 10	-	0.71	1.26	0.59	0.71	0.63
		8MC79/B	8MC79/C	1.97	-	B 8 +0.001	0.71	1.26	0.59	0.71	0.63
		10MC79/B	10MC79/C	1.97	-	B 10 +0.001	0.71	1.26	0.59	0.71	0.63
10NC80/D	10NC80/E			2.48	M 10	-	0.79	1.57	0.75	0.87	0.79
12NC80/D	12NC80/E			2.48	M 12	-	0.79	1.57	0.75	0.87	0.79
		10MC80/B	10MC80/C	2.48	-	B 10 +0.001	0.79	1.57	0.75	0.87	0.79
		12MC80/B	12MC80/C	2.48	-	B 12 +0.001	0.79	1.57	0.75	0.87	0.79
12NC81/D	12NC81/E			3.15	M 12	-	0.98	1.97	0.91	1.10	0.79
16NC81/D	16NC81/E			3.15	M 16	-	0.98	1.97	0.91	1.10	0.79
		12MC81/B	12MC81/C	3.15	-	B 12 +0.001	0.98	1.97	0.91	1.10	0.79
		16MC81/B	16MC81/C	3.15	-	B 16 +0.001	0.98	1.97	0.91	1.10	0.79

d₁	d₂ Thread Type D / Type E	d₃ +0.001 Bore Type B / Type C	d₄	h₁	h₂ min.	t₁ min.	t₂

1.26	1/4 x 20	-	B 1/4	-	0.47	0.79	0.35	0.47	0.39
1.57	5/16 x 18	-	B 5/16	-	0.55	0.98	0.47	0.59	0.51
1.97	5/16 x 18	3/8 x 16	B 5/16	B 3/8	0.71	1.26	0.59	0.71	0.63
2.48	3/8 x 16	1/2 x 13	B 3/8	B 1/2	0.79	1.57	0.75	0.87	0.79
3.15	1/2 x 13	5/8 x 11	B 1/2	B 5/8	0.98	1.97	0.91	1.10	0.79

d₁	d₂ Thread Type D / Type E	d₃ +0.001 Bore Type B / Type C	d₄	h₁	h₂ min.	t₁ min.	t₂

1.26	M 6	-	B 6	-	0.47	0.79	0.35	0.47	0.39
1.57	M 8	-	B 8	-	0.55	0.98	0.47	0.59	0.51
1.97	M 8	M 10	B 8	B 10	0.71	1.26	0.59	0.71	0.63
2.48	M 10	M 12	B 10	B 12	0.79	1.57	0.75	0.87	0.79
3.15	M 12	M 16	B 12	B 16	0.98	1.97	0.91	1.10	0.79
