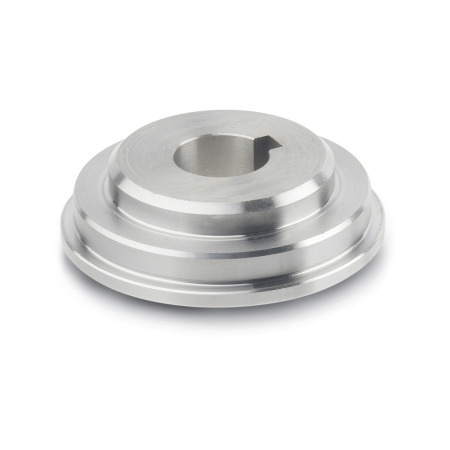

Collar Bushings GN 268

Build & Price

Part Number	d₁ f7	d₂ H7 Bore with keyway	d₃	d₄	l₁	l₂	Scale ring set consists of: 2 collar bushings GN 268 and 1 scale ring body	3 flat springs

268-24-K12	0.945 f7	K 12 H7	1.05	0.71	0.53	0.22	264-30	374-0,3-10
12KGNB	1.260 f7	K 12 H7	1.41	0.98	0.53	0.22	264-40	374-0,4-10
268-32-K14	1.260 f7	K 14 H7	1.41	0.98	0.53	0.22	264-40	374-0,4-10
268-32-K16	1.260 f7	K 16 H7	1.41	0.98	0.53	0.22	264-40	374-0,4-10
268-50-K12	1.969 f7	K 12 H7	2.15	1.50	0.57	0.22	264-60	374-0,6-10
704060	1.969 f7	K 16 H7	2.15	1.50	0.57	0.22	264-60	374-0,6-10
268-50-K20	1.969 f7	K 20 H7	2.15	1.50	0.57	0.22	264-60	374-0,6-10
268-50-K28	1.969 f7	K 28 H7	2.15	1.50	0.57	0.22	264-60	374-0,6-10
268-68-K12	2.677 f7	K 12 H7	2.94	1.97	0.57	0.22	264-80	374-0,8-10
268-68-K14	2.677 f7	K 14 H7	2.94	1.97	0.57	0.22	264-80	374-0,8-10
268-68-K16	2.677 f7	K 16 H7	2.94	1.97	0.57	0.22	264-80	374-0,8-10
268-68-K22	2.677 f7	K 22 H7	2.94	1.97	0.57	0.22	264-80	374-0,8-10

d₁ f7	d₂ H7 Bore with keyway	d₃	d₄	l₁	l₂	Scale ring set consists of: 2 collar bushings GN 268 and 1 scale ring body	3 flat springs

0.945	K 12	-	-	-	1.05	0.71	0.53	0.22	264-30	374-0.3-10
1.260	K 12	K 14	K 16	-	1.41	0.98	0.53	0.22	264-40	374-0.4-10
1.969	K 12	K 16	K 20	K 28	2.15	1.50	0.57	0.22	264-60	374-0.6-10
2.677	K 12	K 14	K 16	K 22	2.94	1.97	0.57	0.22	264-80	374-0.8-10

3D Product Configurator

Selected Part

Part Number

Total Canadian Dollars (net)

Can$32.39

Call / Email for Delivery Time

Quantity

Please note our quantity discounts (Canadian Dollars).

No price breaks available.

Prop 65: Not compliant

WARNING:
Cancer and Reproductive Harm - www.P65Warnings.ca.gov

RoHS: Compliant

This article is RoHS-compliant in application of Annex III., which means it complies with EU Directive 2011/65/EU, including extension (2015/863/EU), for restricting the use of certain hazardous substances in electrical and electronic devices. The Directive regulates the use of hazardous substances in devices and components. The implementation in national law is summarily described with RoHS(Restriction of (the use of certain) hazardous substances)).

Weight: 0.061 lbs

If weight is not listed, please contact our Sales Department for additional information regarding weight.
Phone: 1-800-397-6993

All Prices are in Canadian Dollars. Taxes Not Included.
