SHA Solid Disk Handwheels Nylon Plastic, with or without Revolving Handle


 SHA Nylon Plastic Solid Disk Handwheels, with or without Revolving Handle Type: A - Without handle
Type: A - Without handle

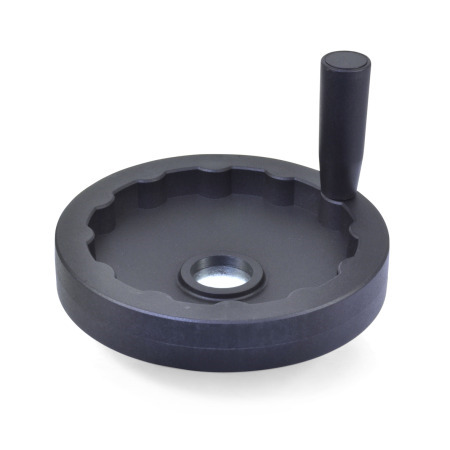

 SHA Nylon Plastic Solid Disk Handwheels, with or without Revolving Handle Type: A - Without handle  SHA Nylon Plastic Solid Disk Handwheels, with or without Revolving Handle Type: D - With revolving handle

Product description

Information

Solid disk handwheels SHA with revolving handle are of modern design.

They are an excellent choice for light to medium duty applications.

No mounting hole in rim for handwheel without handle. Handle shipped loose; mounting of handle is required.

Specification

Body
Nylon plastic

  • Glass filled
  • Temperature resistant up to 230 °F (110 °C)
  • Black, matte finish

Hub bushing
Steel, zinc plated


Revolving handle
Nylon plastic

  • Black fiber reinforced
  • Threaded spindle
    Steel, zinc plated

RoHS

On request

Other modifications such as inch and metric bores, keyways, set screw holes, etc.

Technical drawing

3D
Hide technical drawing
 SHA Nylon Plastic Solid Disk Handwheels, with or without Revolving Handle sketch

Part Options / Table

Type

AWithout handle
DWith revolving handle
Show / Hide columns

Metric

Dimensions in: Inch (change to Metric)
d1d2
Pilot hole
d3d6bsl1l2l3l4l5d4d5
3.94P 40.940.710.790.590.940.471.811.973.780.83M 6
4.92P 60.940.790.940.671.100.472.011.973.980.83M 6
6.30P 61.261.181.100.791.220.592.402.765.160.91M 8
7.87P 61.571.381.260.941.570.592.913.546.461.02M 10

Build & Price

3D Product Configurator
Handwheel diameter d1
Pilote hole d2
Type


Selected Part

Total Canadian Dollars (net)
Can$16.16
Call / Email for Delivery Time
Please note our quantity discounts (Canadian Dollars).
MinMaxPrice
149Can$16.16
5099Can$14.81
100249Can$13.47
≥ 250Can$12.12
Prop 65: Not compliant
WARNING:
Cancer and Reproductive Harm - www.P65Warnings.ca.gov
RoHS: Compliant
This article is RoHS-compliant in application of Annex III., which means it complies with EU Directive 2011/65/EU, including extension (2015/863/EU), for restricting the use of certain hazardous substances in electrical and electronic devices. The Directive regulates the use of hazardous substances in devices and components. The implementation in national law is summarily described with RoHS(Restriction of (the use of certain) hazardous substances)).
Weight: 0.383 lbs
If weight is not listed, please contact our Sales Department for additional information regarding weight.
