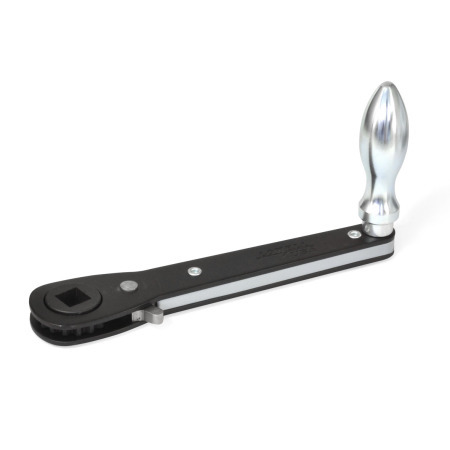

Ratcheting Crank Handles LR 318

Product description

Information

The combination of crank and ratchet arm of these ratcheting crank handles LR 318 makes machinery adjustment faster, easier and safer.

Through hole design allows bolts or shafts to pass entirely through the ratcheting socket so, where required, nuts can then be secured at any part of the threaded length of the bolt or threaded shaft.

Specification

Crank body
Steel

Stamping
Riveted
Slim profile gears
Reversing lever control in wrench head

Opening
Through square

Revolving Handles DIN 98
Steel, zinc plated, blue passivated finish

RoHS

On request

Other sizes, bore or hex openings
Fixed or revolving handles
With handles in steel or plastic

Build & Price

Part Number	l₁	s Square	l₂	d₂	h	l₃	d₁ Ø Handle

3VEP5	7.00	V 3/8	7.81	1.56	0.59	2.94	1.00
4VEP5	7.00	V 1/2	7.81	1.56	0.59	2.94	1.00
5VEP5	7.00	V 5/8	7.81	1.56	0.59	2.94	1.00
4VEP6	10.00	V 1/2	11.00	2.06	0.88	2.94	1.00
5VEP6	10.00	V 5/8	11.00	2.06	0.88	2.94	1.00
6VEP6	10.00	V 3/4	11.00	2.06	0.88	2.94	1.00
4VEP7	12.00	V 1/2	13.50	2.50	0.88	3.34	1.09
6VEP7	12.00	V 3/4	13.50	2.50	0.88	3.34	1.09

l₁	s Square	l₂	d₂	h	l₃	d₁ Ø Handle

7.00	V 3/8	V 1/2	V 5/8	7.81	1.56	0.59	2.94	1.00
10.00	V 1/2	V 5/8	V 3/4	11.00	2.06	0.88	2.94	1.00
12.00	V 1/2	V 3/4	-	13.50	2.50	0.88	3.34	1.09

3D Product Configurator

Selected Part

Part Number

Total Canadian Dollars (net)

Can$114.26

Call / Email for Delivery Time

Quantity

Please note our quantity discounts (Canadian Dollars).

Min	Max	Price
1	49	Can$114.26
50	99	Can$104.74
100	249	Can$95.22
≥ 250		Can$85.69

Prop 65: Not compliant

WARNING:
Cancer and Reproductive Harm - www.P65Warnings.ca.gov

RoHS: Compliant

This article is RoHS-compliant in application of Annex III., which means it complies with EU Directive 2011/65/EU, including extension (2015/863/EU), for restricting the use of certain hazardous substances in electrical and electronic devices. The Directive regulates the use of hazardous substances in devices and components. The implementation in national law is summarily described with RoHS(Restriction of (the use of certain) hazardous substances)).

Weight: -

If the weight is not listed, please contact our Sales Department for more information.
Phone: 1-800-397-6993

All Prices are in Canadian Dollars. Taxes Not Included.
